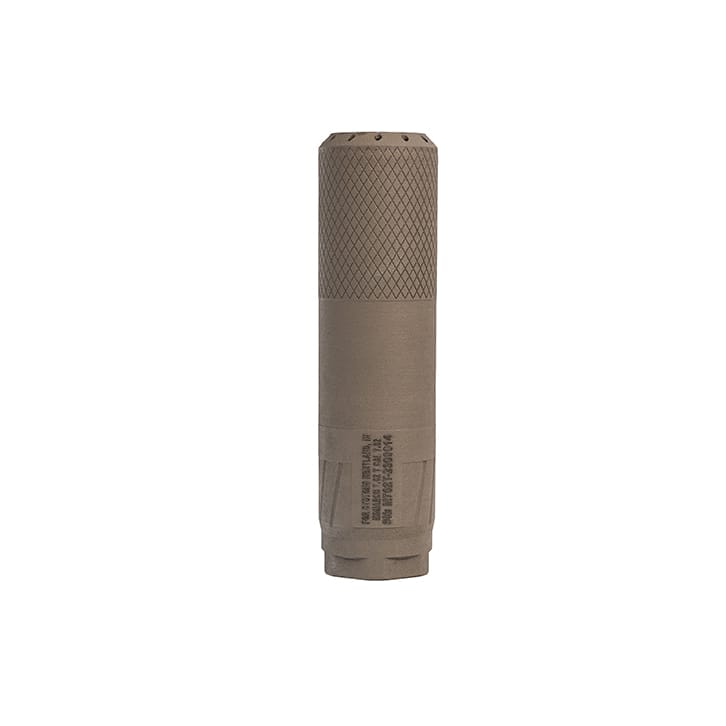

Monarch 7.62

Specs:
Material: 718 Inconel OR Titanium
Method of Manufacturing: DMLS
Weight: 20.4 oz (Inconel) and 9.8 oz (Titanium)
Length: 6.47″ (without a mount)
Diameter: 1.75″
Bore: .30 cal
Finish: C Series Cerakote (Black, FDE, ODG, or RAW media blasted finish)
No mount is included, but we recommend closed tined flash hiders or brakes to be ran with FOR’s design. 3 prong flash hiders are not recommended as it diminishes performance based on FOR’s findings with in-house testing
Barrel length restrictions Inconel: 7.5” 5.56 & similar cartridges, 5.5” supersonic .300blk, 10.5” .308 and similar cartridges, 16” .300 win Mag and larger magnum .30cals
Full Auto Rating Inconel: Be Conservative and allow for cool down time every 270 rounds. Belt Fed rating will be tested in the future
Barrel length restrictions Titanium: 10.5” 5.56 & similar cartridges, 10.5” supersonic .300blk or 7.62×39, 5.5″ .300blk subs, 16” .308 and similar cartridges, 18” .300 win Mag and larger magnum .30cals
Full Auto Rating Titanium: 30 rounds per minute, after 90 rounds allow a 10 minute cool down period.

Design Highlights:
-“PFM” Baffle Technology (Preferential Flow Management) is incredibly efficient in both flow regimes while maintaining minimal back pressure
-Venting array helps direct sound away from the shooter and bystanders behind the muzzle
-Incredible flash suppression for a high flow rate design
-718 Inconel allows for heavy abuse and firing schedule
-DMLS manufacturing method allows for design elements not seen in other technologies
-Maintains suppression efficiency even on small calibers like 5.56
-Integral DMLS printed flash hider end cap
-Knurling design helps with removal/tightening of suppressor by hand
-Wrench flats (1.5″) to help with install or removal of mounting system
-1.375×24 HUB threads allows user to run mounting system of their choice
-Intended cartridges: .300 BLK, 7.62x39mm, .308 win, 5.56. (.30 cal and smaller)

MONARCH 7.62 USERS MANUAL (Included in the box as well)

Mounts: All 1.375×24 RH TPI Mounts will work. Distance from shoulder to blast baffle is 1.59”. Please check mount and can with an alignment rod while mounted to an empty/unloaded rifle.

Cleaning: We recommend the Monarch 7.62 be cleaned in an ultrasonic cleaner with a Cerakote safe solution every 5000-10,000 rounds or when you feel performance has been reduced.

Warranty: If it is FOR Systems’ fault, we will take care of you at no expense. If it is your fault, it will be on a case by case basis and up to FOR’s discretion. If it is due to gross negligence you will be covering the cost of the repair.
